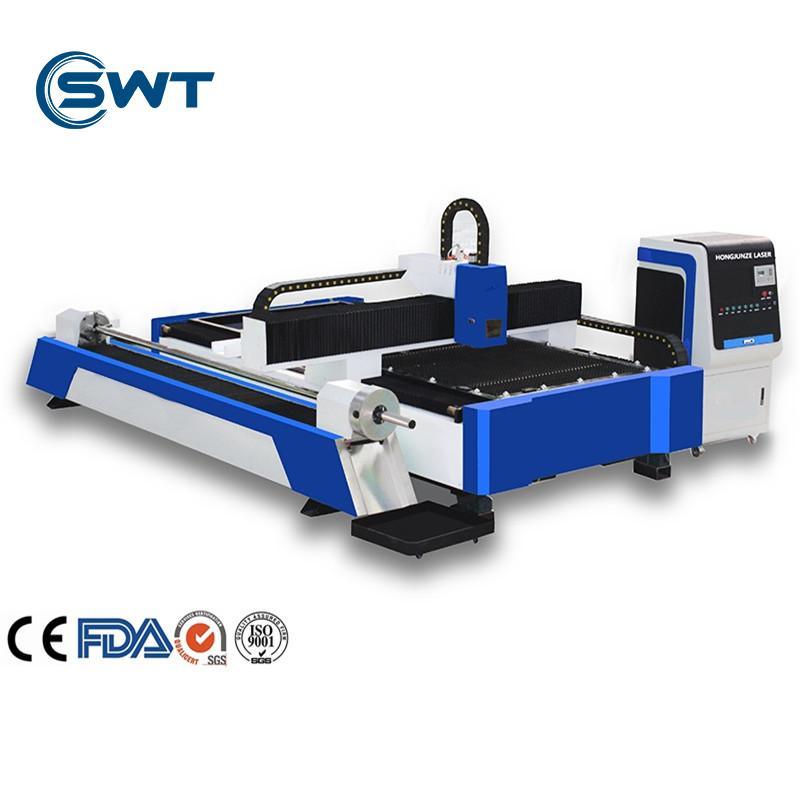

Machine Overview
Our Fiber Laser Plate & Tube Cutting Integrated Machine is a type of laser cutting machine that is designed to cut both flat sheet materials (plate) and tube materials. This dual functionality makes it a versatile choice for many industries, including manufacturing, automotive, aerospace, and construction.
Features
- High precision cutting.precision up to 0.01mm.
- Cutting width 600mmx400mm and 600mmx600mm or customized size.
- Fast cutting speed,smooth cutting surface,no secondary processing.
- Non contact processing,small heat affected area.
Machine Advantages:
1. The machinery structure adopt industrial-use grade heavy-loading base design. All components are 100% assured top superior quality standard, original and genuine. There are subject for return if found fake.
2. The transmission system adopts bridge gantry type middle drive structure, double rack servo drive, and high inertia high torque Japan Fuji servo motors. Taiwan high precision rack and reducer’s max acceleration can reach 0.8G, which ensure high speed and high precision operation.
3. The overall machine body is built on thicker cast iron structure and entire cast aluminum gantry. The strong base has been processed through milling and secondary annealing to effectively eliminate stress.
4. It adpots world famous superior quality fiber laser generator and high precision laser cutting head with auto-focusing. Fiber laser generator lifespan over 10 years, almost no consumables and free of maintenance.
5. High performance laser cutting control system with full closed loop control.
6. Z-axis precision industrial linear module system.
7. Independent control cabinet, industrial machine tool foot and thick towline cable.8. European electrical standard design and France brand Electric components
Product Parameters
| Product Name | Plate and Tube Cutting Integrated Machine |
| Laser Wavelength | 1064-1080nm |
| Laser Power | 500W / 1000W / 1500W |
| Cutting Size | 2000*4000mm / 3000*1500mm |
| Cutting Precision | 0.01mm |
| Power Supply | 220V / 380V |
| Repeat positioning accuracy | ±0.01mm |
| Max accelerate speed | 1.5G |
| Cutting parameters | 2000W Fiber laser source | ||
| Thickness(mm) | Speed(m/min) | Gas | |
| Stainless steel | 1 | 25-35 | N2 |
| 2 | 10-12 | N2 | |
| 3 | 4-6 | N2 | |
| 4 | 2.8-3.2 | N2 | |
| 5 | 1.6-2 | N2 | |
| 6 | 1-1.2 | N2 | |
| 8 | 0.5-0.6 | N2 | |
| Carbon steel | 1 | 20-25 | O2 |
| 3 | 4-4.2 | O2 | |
| 5 | 2.5-3 | O2 | |
| 6 | 2-2.5 | O2 | |
| 8 | 1.2-1.5 | O2 | |
| 10 | 1-1.2 | O2 | |
| 12 | 0.9-1 | O2 | |
| 16 | 0.7-0.8 | O2 | |
| Aluminum | 1 | 18-24 | N2 |
| 2 | 7-9 | N2 | |
| 3 | 3.3-4.2 | N2 | |
| 4 | 1.5-2.5 | N2 | |
| 5 | 1.2-1.5 | N2 | |
| Brass | 1 | 18-24 | N2 |
| 2 | 5-7 | N2 Company Profile |
ABOUT US
Wuhan Swanti Technology Co., Ltd. is a modern manufacturing enterprise specializing in R&D and production of complete sets of industrial laser equipment. It is a high-tech enterprise in Hubei Province. The company has its own standardized garden-style single-family factory building. After years of accumulation of laser technology and various talents, we have a professional technical team, expert professors.Since its establishment, the company has focused on the optimization and integration of technology, quality, application, market and other resources, and has produced complete sets of laser equipment guided by “high efficiency, high performance, and high precision”.Products include: laser welding machines, laser marking machines, laser cleaning machines, laser cutting machines and other laser automation equipment keep up with the international forefront, and work closely with world-famous laser supporting suppliers such as Germany, the United States, and the United Kingdom to develop laser equipment Optoelectronic High conversion efficiency, good beam quality and stable performance.Many technologies are already in a leading position in the country, especially laser marking machines and welding machines, which are leading in terms of technology. The equipment is exported to Europe, the United States and more than 100 countries on 5 continents.
Certifications
Packaging & Shipping
Our Service
1.One year quality guaranty, the machine with main parts(excluding the consumables)shall be changed free of charge when if any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery
