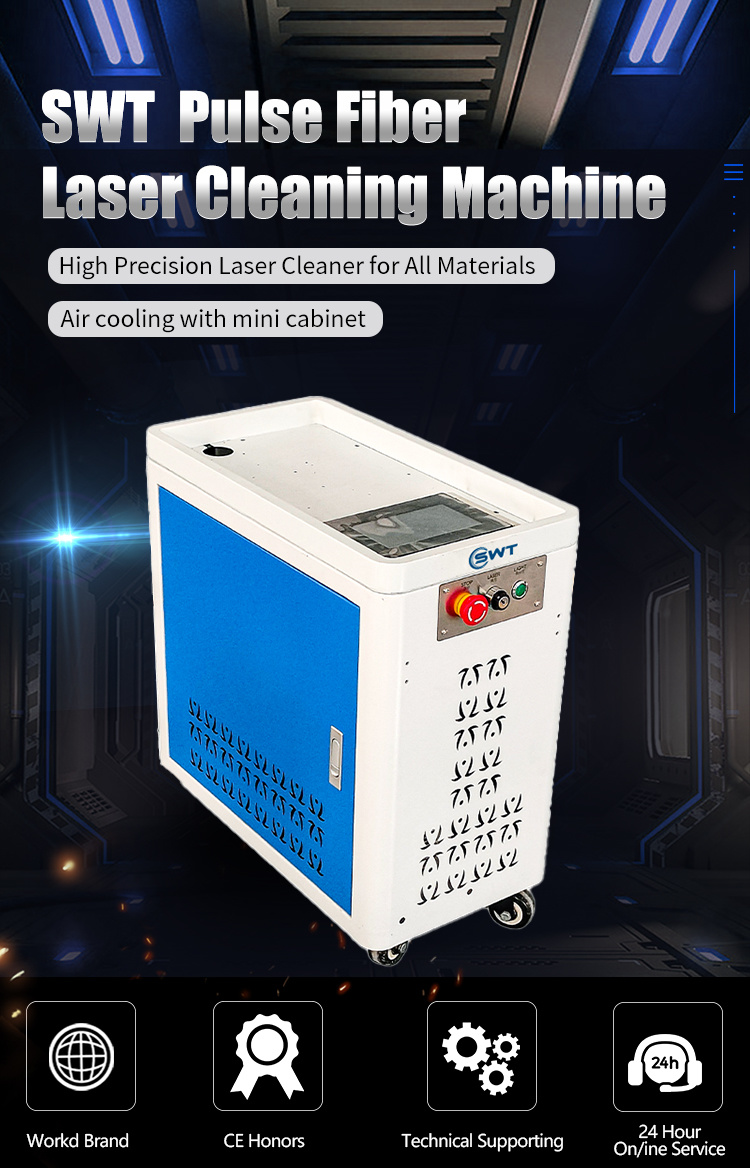

Our Wuhan SWT Pulse fiber laser rust cleaning machine is a high-tech tool that uses laser technology to remove rust and other contaminants from metal surfaces. It works by emitting high-intensity laser beams that are focused on the rusted area, causing the rust to vaporize and be removed from the surface.
This machine is highly effective at removing rust without damaging the underlying metal, making it a popular choice for industries such as automotive, aerospace, and manufacturing. It is also environmentally friendly, as it does not require the use of chemicals or abrasive materials.
The pulse fiber laser rust cleaning machine is easy to operate and can be used on a variety of metal surfaces, including steel, aluminum, and copper. It is a versatile tool that can be used for both small-scale and large-scale rust removal projects.
Overall, the pulse fiber laser rust cleaning machine is a powerful and efficient tool for removing rust and other contaminants from metal surfaces, making it an essential tool for any industry that deals with metal materials.
Our laser cleaning machine are including Continuous Wave Laser Rust Cleaning Machine, Mopa Laser Cleaning Machine, Suitcase Style Laser Cleaning Machine, Bagpack Style Laser Cleaning Machine and Small Handheld Laser Cleaning Machine.
Product features:
- high cleaning efficiency,nice and even finishing.no damage to the target material.
- different laser sources can be selected according to the target application,which allows a wider range of applicable matenals and industries.
- online real-time monitoring technology with multi sensor fusion can monitor the cleaning effect in real time.
- laser cleaning head is portable to be held by hand,it also can co-work a robot or CNCmotion system automatically.
- laser cleaning system is highly reliable and maintenance free.
Application:
Metal workpiece laser derusting, surface oil removal, paint and coating removal, welding surface cleaning, mold cleaning, cultural relics restoration, Widely used in such industries: aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical etc.
1. Portable design: compact structure, wearable, ergonomic, can work alone;
2. Efficient cleaning: Laser cleaning has high efficiency and saves time.
3. Non-contact: laser cleaning without grinding and non-contact;
4. Pollution-free: It is easy to solve the environmental pollution problems caused by chemical cleaning without using any chemical agents and cleaning liquid.
5. Expansibility: changeable focus lens, changing focus depth, wider range of laser cleaning beam.
Parameters:
| Model | SWT-QX100 | SWT-QX200 | SWT-QX300 | SWT-QX500 | SWT-QX1000 |
| Pulse Frequency | 1-2000HZ | ||||
| Cooling Method | Air cooling or water cooling | ||||
| Power Supply | AC220 V-380 V | ||||
| Weight | Host: 60-230KG / Laser cleaning head: 0.8KG | ||||
| Cleaning Mode | Hand-held / automation(optional) | ||||
| Laser wavelength | 1064nm-1080nm | ||||
| Power Consumption | 800-1000W | ||||
| Ambient Environment | 5-40ºC | ||||
| Pulse Width | 10-400ns | ||||
| Power | 100W | 200W | 300W | 500W | 1000W |
| Focal Depth | 10mm | ||||
| Host Dimensions | 700*400*800mm | ||||
Comparison with Traditional Clean Methods:
| Comparison | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
| Washing Method | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
| Harm to base material | None | Yes | Yes | None |
| Washing Efficiency | High | Low | Low | Mid. |
| Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
| Washing result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
| Precision Washing | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
| Safety/Environment | No pollution | Chemical pollution | Dust pollution | No pollution |
| Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement of the operator. Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
| Investment | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost. |
Wuhan SWT Technology Co., Ltd. is a modern manufacturing enterprise specialized in researching, developing and producing complete sets of industrial laser equipment. It is a high-tech enterprise located in Wuhan East Lake High-tech Development Zone. The company currently has a standard factory building of 3,500 square meters.
1.One year quality guaranty, the machine with main parts(excluding the consumables)shall be changed free of charge when if any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery.
