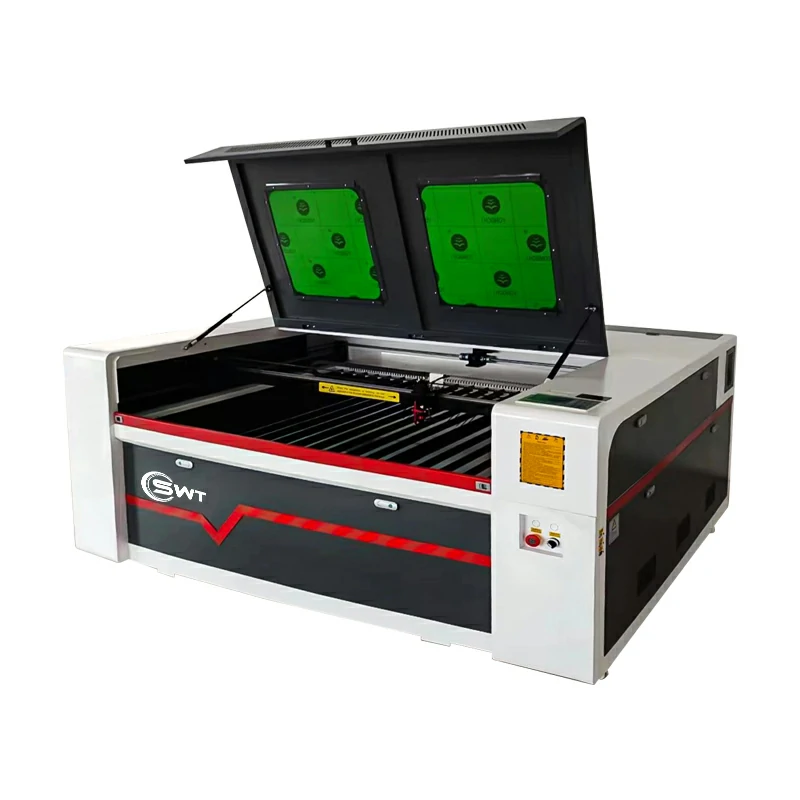

Co2 Laser Engraving Machine
A CO2 Laser Engraving Machine is a type of laser equipment that uses a CO2 (carbon dioxide) laser to engrave or mark various materials. These machines are commonly used in industries such as sign making, gift customization, and manufacturing.
Apply Industry
it is an ideal type model for 2D/3D subsurface crystal engraving business,not only suitable for the production of crystal gifts and crafts, but also for the production of crystal trophies and awards in different shapes and sizes.
Features
The highly integrated and high-peak power laser developed by ourselves ensure the high speed of engraving,the CE standard design ensures the safety of processing,and the special own-designed air cooling system can ensure the machine’s continuous working time longer than 24 hours,at the same time keeping the high stability of the machine.
Products Parameter
| Model NO. | SWT-CRS4030 |
| Laser Medium | Nd:YAG Crystal diode pump 532nm |
| Laser Frequency | 4000HZ |
| Engraving Speed | 180000-220000 dots/min |
| Motion Control | 1 Galvo + x,y,z |
| Engraving Area | 400*300*120mm |
| Dot Diameter | 20-40um |
| Resolution | 800-1200 DPI |
| Temperature | 5-35℃ |
| Relative Humidity | <70% |
| Repeated location accuracy | <10um |
| Continuous working time | >24hours |
| Cooling Method | Air Cooling |
| Lifetime of laser diode | >20000hours |
| Power Consumption | <800W |
| Power Supply Connection | Single phase 220v or 110v(+/- 10%),50hz or 60hz |
| Sound level | 50db |
| Warranty of Quality | 2 years on whole machine |
| Weight | 115kg |
| Dimension | 860*730*780mm |
