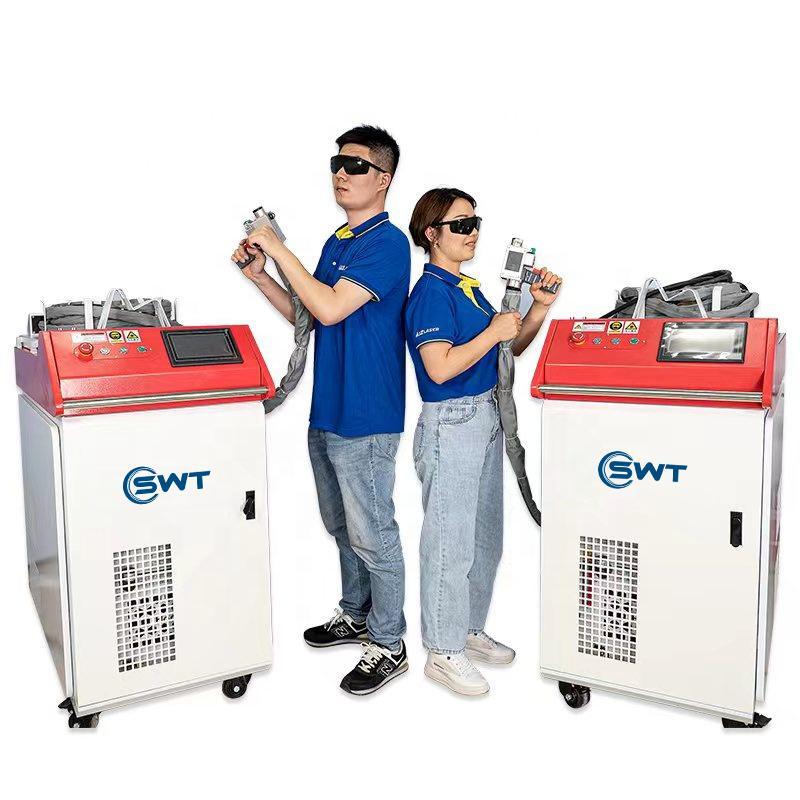

CW High Power Laser Cleaning Machine
Introduction:
Laser cleaning equipment is a new generation of industrial surface cleaning laser system. It adopts the advanced laser source, laser optical scanners and control system to meet the requirements of metal surface cleaning process. It can be customized according to customer requirements to develop a dedicated cleaning system. Widely used for the surface laser degreasing, laser paint removal, laser removal of zinc, laser film removal, laser cleaning, such as coating, etc
CW laser cleaner with high laser power,like 1500w 2KW,3KW.This kinds of laser cleaner has cheap price and high cleaning efficiency for rust on metal.Because of the high laser power,it will create more heat and deform the substrate of thin metals,especially thickness less than 3mm.
Some artists like to make some painting on wall and street,we call it graffiti.This kind of spray paint is also ok to be removed by CW laser cleaner.Paint on aluminum is also good to removed by CW laser cleaner.
Now we upgrade the laser head,which can do not only cleaning,but also cutting and welding as well.4 functions in 1 machine.Very cost-effective!
Products Parameter
| Model | SWT-QX-1500C | SWT-QX-2000C | SWT-QX-3000C |
| Laser source | CW Fiber Laser | CW Fiber Laser | CW Fiber Laser |
| Laser Power | 1500W | 2000W | 3000W |
| Fiber cable L | 10M | 10M | 10M |
| Wavelength | 1080nm | 1080nm | 1080nm |
| Frequency | 50-20000 Hz | 50-20000 Hz | 50-20000 Hz |
| Clean speed | ≤40 M²/Hour | ≤45 M²/Hour | ≤50 M²/Hour |
| Cooling | Water cooling | Water cooling | Water cooling |
| Dimension | 1200*600*1180 mm | 1200*600*1180 mm | 1200*600*1180 mm |
| Weight | 200Kg | 220Kg | 240Kg |
| Beam width | 10-300mm | 10-300mm | 10-300mm |
| Optional | Manual/Auto | Manual/Auto | Manual/Auto |
| Temperature | 10-40 ℃ | 10-40 ℃ | 10-40 ℃ |
| Power | < 5KW | < 6KW | < 7KW |
| Voltage | Single Phase 220V,
50/60HZ |
Single Phase 220V,
50/60HZ |
Three Phase 380V,
50/60HZ |
Application scope:
Metal workpiece laser derusting, degreasing, laser paint removal, laser removal of zinc and film, laser coating removal, widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, military etc.
Tips:Laser rust removal,Industrial laser cleaning,High-power laser cleaning,Automated laser cleaning,Laser cleaning applications,Eco-friendly laser cleaning,Laser paint removal,Laser surface cleaning,Laser cleaning technology advancements,Portable laser cleaning
