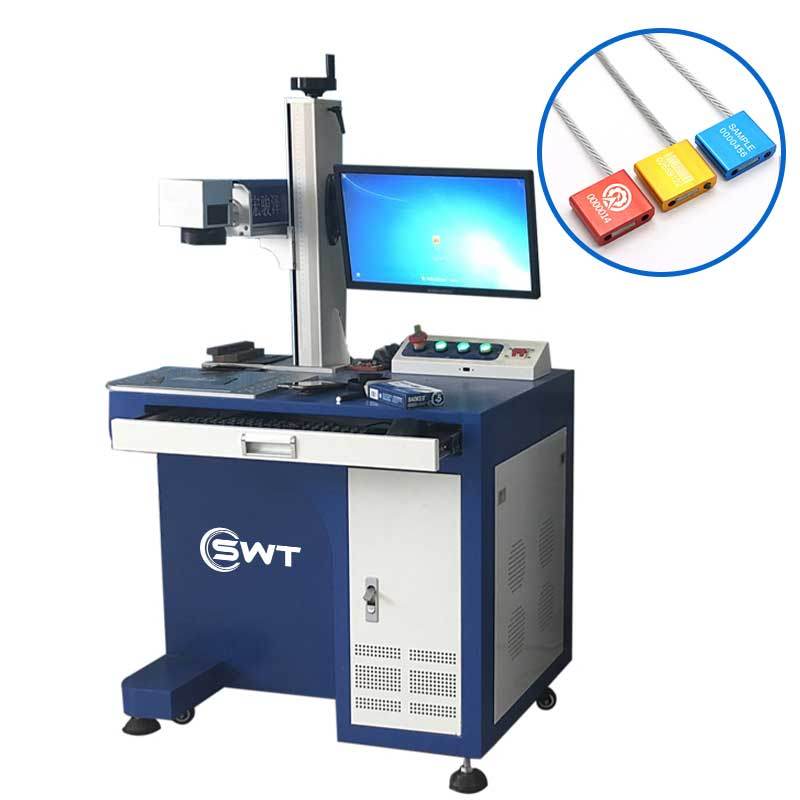

Machine Description
Our SWT Desktop Style UV Laser Marking Machine are adopts three order intracavity frequency doubling (THG) technology. Compared to infrared laser, 355nm ultraviolet laser has extremely small laser facula, which reduces the mechanical deformation to a significant extent and diminishes the influence of heat-process to a very limited area.
This item Laser Marking Machine is a compact and mobile device used for marking or engraving various types of materials. These machines are often used in industries like manufacturing, engineering, and construction for marking product codes, serial numbers, barcodes, logos, etc.
Laser Marking Machine Features
- Easy to storage and transportation, high precision temperature control.
- Applied for Precision marking and engraving for various industry.
- High quality permanent marking for Non-Metal products.
- Environment friendly and safe Machinery.
- Electro-optical conversion efficiency, long service life.
Laser Marking Machine Technical Data
| Model | SWT-UVDB-3W | SWT-UVDB-5W | SWT-UVDB-10W | SWT-UVDB-20W |
| Laser Source | UV | |||
| Laser Wavelength | 355nm | |||
| Laser Power | 3W | 5W | 10W | 20W |
| Marking Speed | 400 characters/second | 400 characters/second | 500 characters/second | |
| Beam Diameter | 0.01-0.05mm | |||
| Repeated Accuracy | ±0.001mm | |||
| Marking Scale | 110*110mm / 180*180mm | |||
| Power Consumption | 800W | 800W | 1200W | |
| Cooling Method | Water Cooling | |||
| Working Temperature | 5-40ºC | |||
| Power Supply | 380V/50-60Hz or 220V/50-60Hz | |||
| Mini Line Width | 0.015nm
Product application : |
|||
Our UV laser marking machine are mainly used for various of Glass,Charger shells,TET, LCD,Textiles,Silicon, IC Crystal, Polymers,Drug, Cosmetic,Polymer materials such as wire, bottles(boxes) surface marking , and micro- holes.
