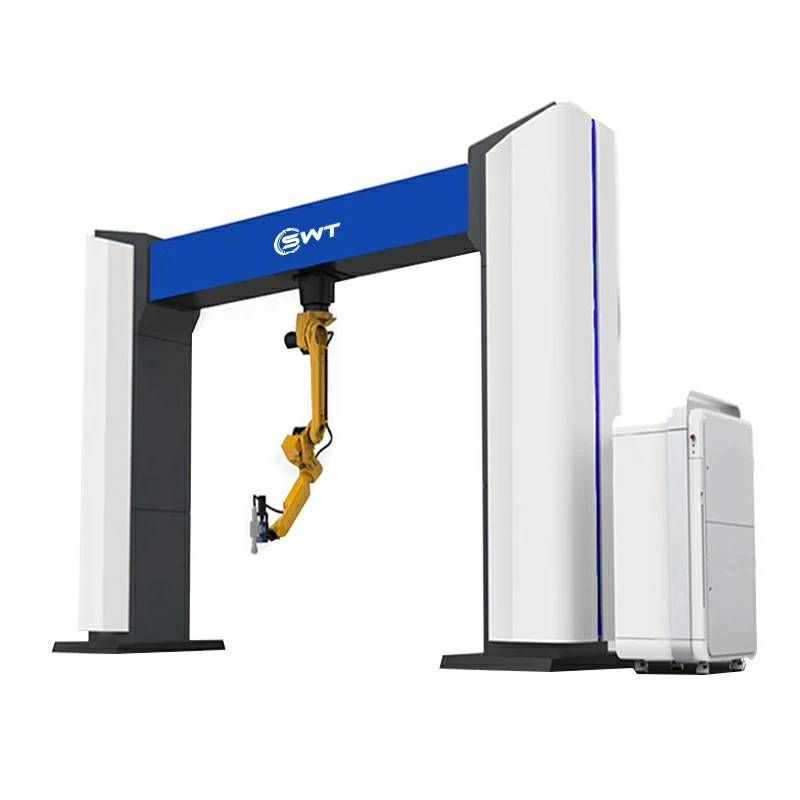

Gantry Robot Cutting Machine
A gantry robot cutting machine is a type of industrial robot that moves in three dimensions (X, Y, and Z axes) and is used for cutting operations. They are typically mounted on an overhead structure that allows them to move and cut objects with high precision.
Apply Industry
The products are widely used in the precision cutting industry of metal plates,such as trinkets,silicon steel sheets,glasses industry,gold and silver jewelry,etc.
Features
- High precision cutting.precision up to 0.01mm.
- Cutting width 600mmx400mm and 600mmx600mm or customized size.
- Fast cutting speed,smooth cutting surface,no secondary processing.
- Non contact processing,small heat affected area.
Products Parameter
| Product Name | Gantry Robot Cutting Machine |
| Laser Wavelength | 1064-1080nm |
| Laser Power | 500W / 1000W / 1500W |
| Cutting Size | 600*4000mm / 600*600mm |
| Cutting Precision | 0.01mm |
| Power Supply | 220V / 380V |
| Repeat positioning accuracy | ±0.01mm |
| Max accelerate speed | 1.5G |
