Introduction :

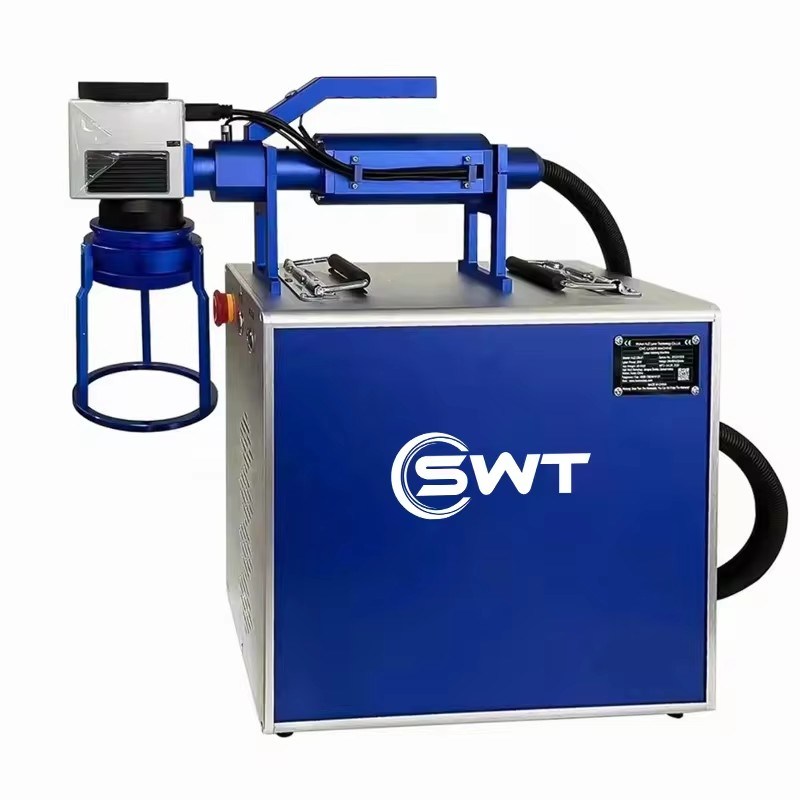

The Mini Handheld Fiber Laser Marking Machine is a compact and portable device suitable for marking various materials. Its small size and lightweight design make it easy to use in different settings.
Features :
- Compact and portable design for easy handling.
- High precision marking with a minimum line width of 0.02mm.
- Fast marking speed of up to 7000mm/s.
- Versatile compatibility with a wide range of materials.
- User-friendly interface and software for convenient operation.
Application Scene:
Ideal for on-the-go marking tasks such as product identification, part numbering, logo engraving, and personalized item marking. Its portability and precision make it suitable for industries like manufacturing, jewelry, electronics, and crafts.
Parameters:
| Model |
|
||
| Fiber laser type | Pulse fiber laser 20w | ||
| Max Single pulse energy | 0.67mj | ||
| Pulse duration | 120-150ns | ||
| Laser beam quality M2 | <1.5 | ||
| Frequency | 1-400khz | ||
| Wavelength | 1064nm | ||
| Marking Area | 110mm×110mm(optional) | ||
| Spot size | 27.5μm | ||
| Marking Depth | 0.03-0.08mm | ||
| Max position speed | 8000mm/s | ||
| Min.linear width | 0.01mm | ||
| Min.Character size | 0.2mm | ||
| Repetition Accuracy | <8μrad | ||
| Control program | Genuine EZCAD control system Compatible with win7/8/10 | ||
| Graphic format supported | Jpg, Bmp, dXF, Plt | ||
| Working voltage | AC220V 50HZ/ AC110V 60HZ | ||
| Cooling type | Air cooling | ||
| Operating parameter | 0-40ºC | ||
| Power consumption | ≤500w | ||
| Packing size | 34*38*35cm | ||
| Gross weight | 8kg |
Laser Marking samples
