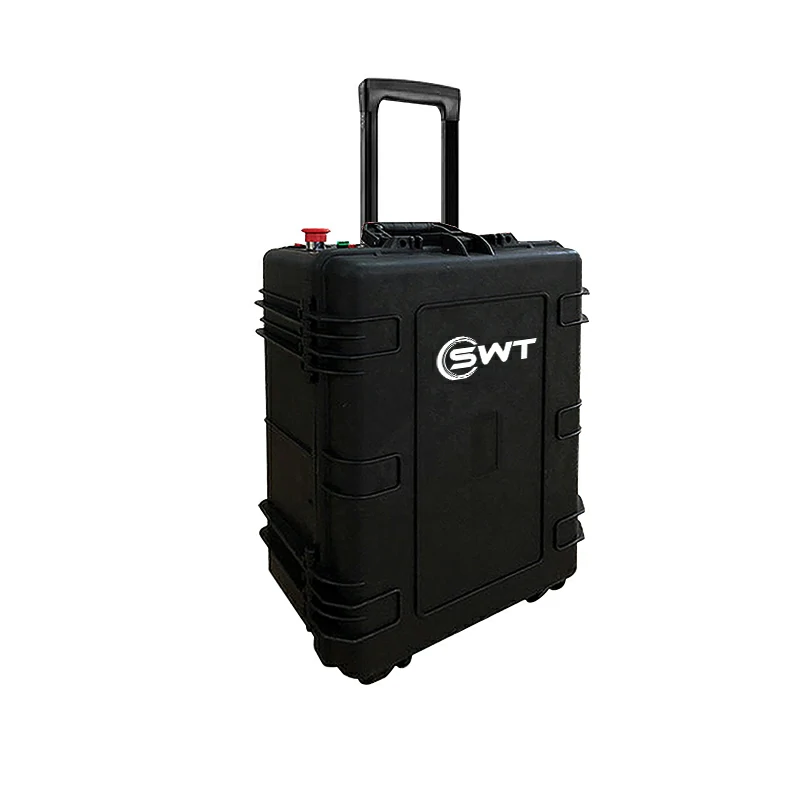

Pull Rod Pulse Cleaning Machine
A pull rod pulse cleaning machine is a type of cleaning equipment that uses a pulsating action to remove dust, dirt, and other contaminants from surfaces. These machines are commonly used in industries that require a high level of cleanliness, such as food processing, pharmaceuticals, and electronics manufacturing.
Apply Industry
Laser deaning is a new generation of non-destructive surface treatment high-tech products.Because of its easy installation and operation,availability of automation portable cart design,durable and compact structure,it’s now widely applied in removing of oil/rust/coating/painting/oxide on metal surface,stone building surface attachment,rubber tire mold residue,and etc.Laser cleaning is considered to be aneffective and eco-friendly way of surface cleaning compared to traditional chemical or mechanical way.
Features
- high cleaning efficiency,nice and even finishing.no damage to the target material.
- different laser sources can be selected according to the target application,which allows a wider range of applicable matenals and industries.
- online real-time monitoring technology with multi sensor fusion can monitor the cleaning effect in real time.
- laser cleaning head is portable to be held by hand,it also can co-work a robot or CNCmotion system automatically.
- laser cleaning system is highly reliable and maintenance free.
Products Parameter
| Model | SWT-QX100 | SWT-QX200 | SWT-QX300 | SWT-QX500 | SWT-QX100 |
| Pulse Frequency | 1-2000HZ | ||||
| Cooling Method | Air cooling or water cooling | ||||
| Power Supply | AC220 V-380 V | ||||
| Weight | Host:60-230KG / Laser cleaning head: 0.8KG | ||||
| Cleaning Mode | Hand-held / automation(optional) | ||||
| Laser wavelength | 1064nm-1080nm | ||||
| Power Consumption | 800-1000W | ||||
| Ambient Environment | 5-40℃ | ||||
| Pulse Width | 10-400ns | ||||
| Power | 100W | 200W | 300W | 500W | 1000W |
| Focal Depth | 10mm | ||||
| Host Dimensions | 700*400*800mm | ||||
