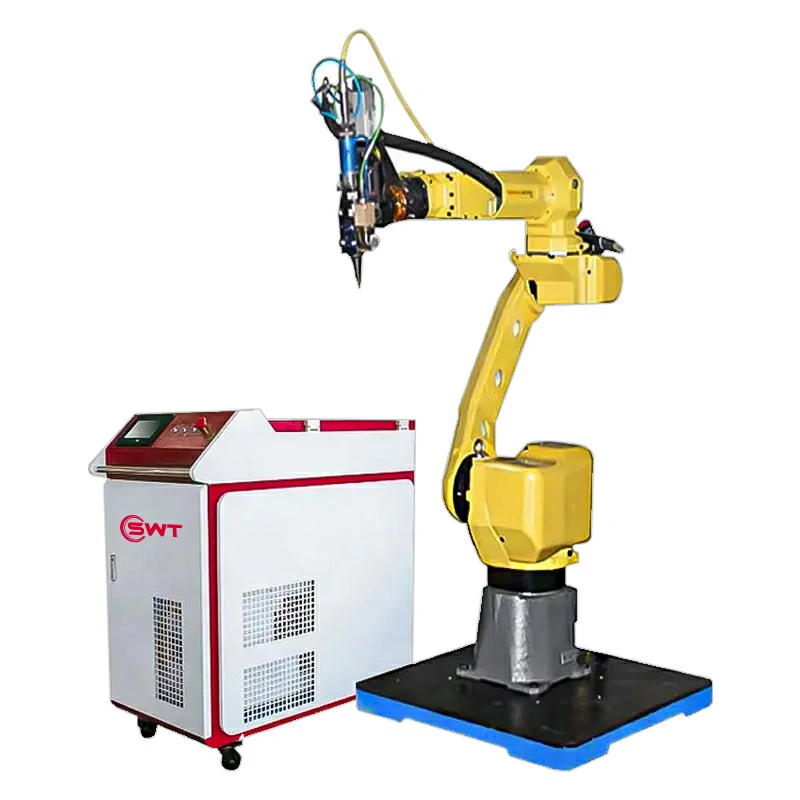

Robot Laser Welding Machine
A robot laser welding machine is a mechanized programmable tool that automates the process of welding, cutting, and shaping materials. These machines are often used in industrial manufacturing settings to increase efficiency, precision, and safety.
Apply Industry
Widely applied for various metal precision welding,especially suitable for mobile phone/PC/consuming electronics and 3C components outer surface precision welding.
Features
- Long lifetime fiber laser source adopted,maintenance free,no consumable,low maintenance cost.
- Photo-electronic conversion efficiency is around 30%which ensure low running cost.
- Compact design and forced air cooling technology save its footprint.
- Stabie output energy (±1%)enhances product yield rate greatly.
- Pulse frequency up to 2500HZwhich allows high speed welding on thin metal sheet.
- Better beam quailty compared to traditional diode laser brings,beautiful welding beads,or even seamless welding.
Products Parameter
| Model | SWT-PWD-1000 | SWT-PWD-2000 | SWT-PWD-3000 |
| Pulse Frequency | 1-2500HZ | ||
| Power Stability | ±1% | ||
| Ambient Environment | T&H 5-35℃, 5%-75% | ||
| Host Weight | ≥15J ≥301 | ||
| Laser Mode | Pulsed or CW | ||
| Power Supply | AV220-380V | ||
| Power Consumption | 6KW 9KW | ||
| Welding Spot Diameter | 0.2-5mm | ||
| Host Dimensions | 1400*650*1200mm | ||
| Laser Power | 1000W | 2000W | 3000W |
| Cooling Method | Water Cooling | ||
| Pulse Width | 0.2ms | ||
| Laser Wavelength | 1064nm | ||
| Locating System | Red laser assistance, fixture / visual locating optional | ||
| Flexible Worktable | Galvo scanner intefrated worktable, XY motion table, robot arm | ||
