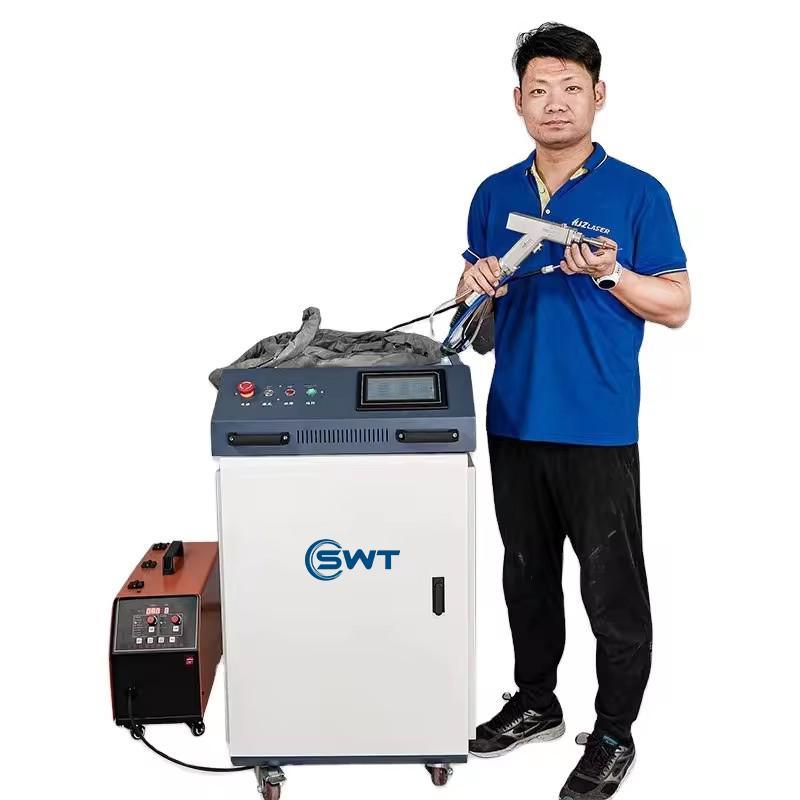

Our SWT Hand-held laser welding machine adopts a new generation of fiber lasers and is equipped with self-developed laser welding heads. It has the advantages of simple operation, beautiful weld seam, fast welding speed and no consumables. Welding of metal materials such as plates, iron plates and galvanized plates. It is 3-10 times the speed of conventional argon arc welding plasma welding, power consumption is 10-20% less than traditional process, save 2-3 labor costs.
Safety:
It has the laser beam output control, only when the welding head touches the metal surface,the machine can work,It can meet the CE and safety standard.Performance:
Welding beam energy distribution, have the best spot for welding needs.Material:
Applicable to all kinds of complex welding, welding of various devices, and 5mm sheet welds.
Convenience:
welding flexibility and convenience, up to 5 m optical fiber, can be equipped with 8 m fiber optic.
Parameters:
| Model | SWT-HWD-1000W |
| Name | Handheld laser welding machine |
| Laser source | Max / Raycus / BWT source |
| Voltage | 220V / 380V |
| Cable length | Standard 10meter ,possible :15m |
| Laser power | 1000W |
| Wavelength | 1064/1070nm |
| Welding frequency | 0.5 ~ 1000Hz |
| Working principle | continuous or modulated |
| Speed range | 0 ~ 120mm/s |
| Water cooler | industrial thermostatic water chiller |
| Working environment temperature | 5 ~ 35 * C |
| Humidity of the working environment | < 70% No condensation |
| Welding thickness / depth | 0.5-8mm |
| Welding beam | 0.5mm- 5mm |
| Weight | 160KGS |
| Warranty | 2 years |
| Wood package dimensions | 107 cm * 60cm * 122cm |
Product Advantages:
1) Simple operation: The handheld laser welding machine is easy to learn and use, and the operator can easily achieve high-quality welding results.
2) High welding efficiency: Hand-held laser welding is fast, which is more than twice that of argon arc welding. It can easily double the production efficiency on the basis of saving 2 welding workers.
3) Welding without consumables: In most people’s impression, the welding operation is “left hand goggles, right hand clamp welding wire”. But with the handheld laser welding machine, So Easy, the welding can be easily completed without wire filling during the operation, which reduces the material cost in production and processing.
4) Good welding effect: Hand-held laser welding is hot-melt welding. Compared with traditional welding, laser welding has a higher energy density and can achieve better welding results.
5) High energy efficiency conversion: People who don’t understand, after knowing the effect of laser application, will naturally wonder whether the energy consumption of laser equipment is very high. The fact is just the opposite. The photoelectric conversion efficiency of the laser is as high as 30%, and the energy consumption is lower.
6) Convenient and flexible to use: Hand-held laser welding, no fixed-point workstation, free and flexible, and a wide range of reach.
7) The welding seam does not need to be polished: after traditional welding, the welding point needs to be polished to ensure smoothness and not roughness. The hand-held laser welding precisely reflects more advantages in the processing effect: continuous welding, smooth and no fish scales, beautiful and no scars, and less subsequent polishing procedures.
Advantage Comparison
| Comparison process | Tradition Welding | Fiber Laser Welding | Our SWT Laser Welding |
| Heat input to the workpiece | Very High | Low | Low |
| Deformation of the workpiece, undercut | Big | Small | Small |
| Bond strength to base metal | General | Good | Very Good |
| Follow-up | Polish | No polish, or rarely polish | No polish, or rarely polish |
| Weld Speed | General | More than 2 times argon arc welding | More than 2 times argon arc welding |
| Applicable Material | Stainless steel ,Carbon steel, Galvanized sheet | Stainless steel, Carbon steel, Galvanized sheet | Stainless steel, Carbon steel, Galvanized sheet |
| Consumables | Need more consumables | Seldom need consumables | Seldom need consumables |
| Operation | complex | Normal | Simple |
| Operator safety | Unsafe | Safe | Safe |
| Environment protection | Not environmentally friendly | Environmentally friendly | Environmentally friendly |
| Welding fault tolerance | Excellence | Not good | Excellence |
| Wobble welding | No | No | Yes |
| Spot width adjustable | No | No | Yes |
| Welding quality comparison | Worse | Normal | Very Good |
