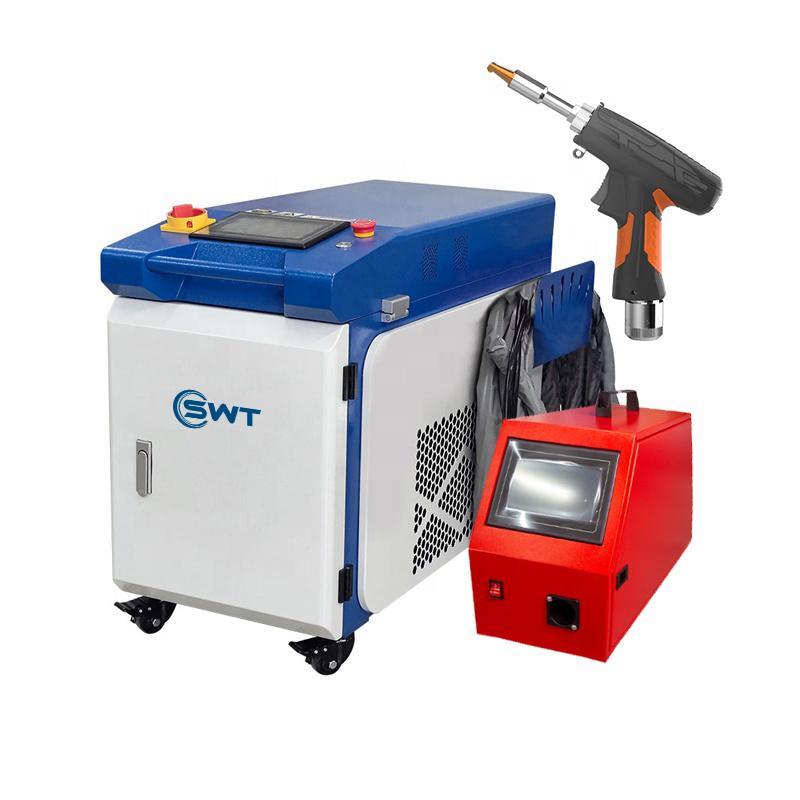

Water Cooled Mini Handheld Laser Welding Machine for Metal Surface Precision Welding

Machine Description

Our SWT water-cooled mini handheld laser welding machine is a compact and portable tool that uses laser technology to join or weld metal components together. The term “water-cooled” refers to the cooling system integrated into the machine to dissipate heat generated during the welding process, ensuring the machine operates efficiently and consistently.This handheld laser welding machine is designed for ease of use and maneuverability, allowing operators to weld in tight spaces or on complex shapes with precision. The mini size of the machine makes it suitable for small-scale welding tasks, repairs, or on-site welding applications where mobility is essential.

The water-cooled feature helps maintain the optimal temperature of the laser welding machine during operation, preventing overheating and ensuring long-term durability. The cooling system typically circulates water through the machine to absorb heat and maintain a stable welding environment.

Overall, a water-cooled mini handheld laser welding machine is a versatile and efficient tool for welding metal components with high accuracy and speed. It is suitable for various industries, including automotive, jewelry, electronics, and manufacturing, where precise and reliable welding is required.

Features:
Safety:
It has the laser beam output control, only when the welding head touches the metal surface,the machine can work,It can meet the CE and safety standard.

Performance:
Welding beam energy distribution, have the best spot for welding needs.

Material:
Applicable to all kinds of complex welding, welding of various devices, and 5mm sheet welds.

Convenience:
welding flexibility and convenience, up to 5 m optical fiber, can be equipped with 8 m fiber optic.

Parameters:

Model	SWT-HWD-2000W
Name	Handheld laser welding machine
Laser source	Max / Raycus / BWT source
Voltage	220V / 380V
Cable length	Standard 10meter ,possible :15m
Laser power	2000W
Wavelength	1064/1070nm
Welding frequency	0.5 ~ 1000Hz
Working principle	continuous or modulated
Speed range	0 ~ 120mm/s
Water cooler	industrial thermostatic water chiller
Working environment temperature	5 ~ 35 * C
Humidity of the working environment	< 70% No condensation
Welding thickness / depth	0.5-8mm
Welding beam	0.5mm- 5mm
Weight	160KGS
Warranty	2 years
Wood package dimensions	107 cm * 60cm * 122cm

Water Cooled Handheld Laser Welding Machine for Metal Surface Precision Welding

Product Advantages:

1) Simple operation: The handheld laser welding machine is easy to learn and use, and the operator can easily achieve high-quality welding results.

2) High welding efficiency: Hand-held laser welding is fast, which is more than twice that of argon arc welding. It can easily double the production efficiency on the basis of saving 2 welding workers.

3) Welding without consumables: In most people’s impression, the welding operation is “left hand goggles, right hand clamp welding wire”. But with the handheld laser welding machine, So Easy, the welding can be easily completed without wire filling during the operation, which reduces the material cost in production and processing.

4) Good welding effect: Hand-held laser welding is hot-melt welding. Compared with traditional welding, laser welding has a higher energy density and can achieve better welding results.

5) High energy efficiency conversion: People who don’t understand, after knowing the effect of laser application, will naturally wonder whether the energy consumption of laser equipment is very high. The fact is just the opposite. The photoelectric conversion efficiency of the laser is as high as 30%, and the energy consumption is lower.

6) Convenient and flexible to use: Hand-held laser welding, no fixed-point workstation, free and flexible, and a wide range of reach.

7) The welding seam does not need to be polished: after traditional welding, the welding point needs to be polished to ensure smoothness and not roughness. The hand-held laser welding precisely reflects more advantages in the processing effect: continuous welding, smooth and no fish scales, beautiful and no scars, and less subsequent polishing procedures.

Advantage Comparison

Comparison process	Tradition Welding	Fiber Laser Welding	Our SWT Laser Welding
Heat input to the workpiece	Very High	Low	Low
Deformation of the workpiece, undercut	Big	Small	Small
Bond strength to base metal	General	Good	Very Good
Follow-up	Polish	No polish, or rarely polish	No polish, or rarely polish
Weld Speed	General	More than 2 times argon arc welding	More than 2 times argon arc welding
Applicable Material	Stainless steel ,Carbon steel, Galvanized sheet	Stainless steel, Carbon steel, Galvanized sheet	Stainless steel, Carbon steel, Galvanized sheet
Consumables	Need more consumables	Seldom need consumables	Seldom need consumables
Operation	complex	Normal	Simple
Operator safety	Unsafe	Safe	Safe
Environment protection	Not environmentally friendly	Environmentally friendly	Environmentally friendly
Welding fault tolerance	Excellence	Not good	Excellence
Wobble welding	No	No	Yes
Spot width adjustable	No	No	Yes
Welding quality comparison	Worse	Normal	Very Good
